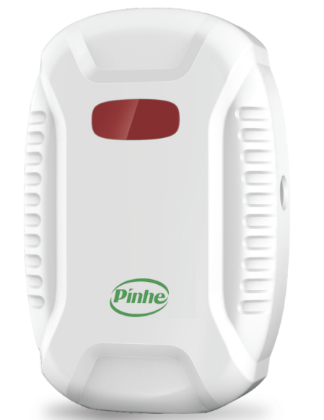

AC Tubular Motor Controller PH-J02

Product Name: AC Tubular Motor Controller

Product Model: PH-J02

Factory Configuration:

• Standard Configuration: One PH-J02 controller, two PH-Y01 portable transmitters, and one matching cable
• Optional Configuration: PH-Y02 Portable Transmitter

Product Introduction:

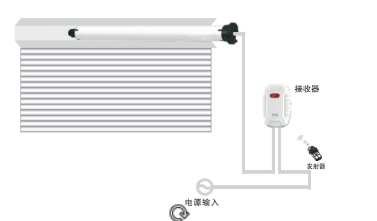

• Controls the roll-up door to rise, lower, and stop
• Adopts double-sided PCB board and SMT chip technology
• Utilizes superheterodyne receiving technology
• Motor up and down button setting: Press and hold the lock button for 8 seconds
• Suitable for all Pinhe portable radio transmitters


  Performance Parameters:





  Input voltage	AC220V/50HZ±20%	Reception frequency	433MHZ
  Output power	500W	Reception distance	≦30m
  Output time	120S	Receive sensitivity	-110dB
  Operating temperature	-20℃─+70℃
