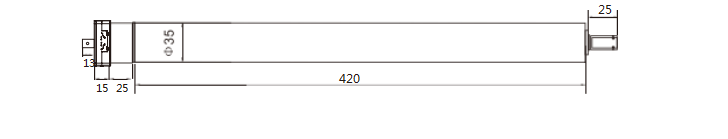

412Dimensional drawing:
Dimensional drawing:
Wiring diagram:
 |
Blue = Centerline (Zero Line) Black = upper or lower phase Brown = upper or lower phase Yellow / Green = Ground wire 230V/50HZ |
Product Name: HTDL35S (Standard) Series Motor
Product Introduction:
External receiver, frequency 433.92MHz
Optional silent motor, operating noise 42dB mechanical limit;
The stroke head has a small diameter and less operating noise, which is suitable for indoor sunshade products such as electric roller blinds, electric wooden venetian blinds, electric Roman blinds, and electric folding blinds.
Suitable for the following series of accessories:
|
管子尺寸 /TUBE SIZE |
传动管 /TUBE TYPE |
尾插 /TAIL PLUG |
CROWN |
RUNNER /RUNNER |
|||||
|
F50 |
HTDT-CD50 |
|
HTDT-WC47 |
HTDT-HG45 |
|
HTDT-ZL45 |
|
||
|
F55 |
HTDT-CD55 -1 -2 |
HTDT-WC55 HTDTWC5-70 |
|
|
HTDT-HG55 |
|
HTDT-ZL55 |
|
|
|
○40 |
HTDT-CD40 |
|
HTDT-WC40 |
|
HTDT-HG40 |
|
HTDT-ZL40 |
|
|
|
|
HTDT-CD60 |
|
HTDTWC57-01 HTDT-WC60L |
|
HTDT-HG57 |
|
HTDT-ZL57A HTDT-ZL57 |
-A . |
|
Use:
|
shutters |
Roller shutters |
Film and television screens |
Drying racks |
Technical Parameters:
|
型号 - PRODUCT CODE |
HTDT35S-03/28 |
HTDT35S-06/28 |
HTDT35S-08/28 |
HTDT35S-10/17 |
HTDT35S-13/12 |
|
额定电压 - Rated Voltage(V) |
220V |
220V |
220V |
220V |
220V |
|
额定频率 - Rated Frequency(Hz) |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
|
额定输入功率 - RATED INPUT POWER(W) |
120W |
140W |
140W |
140W |
150W |
|
额定输出转矩 - Rated output torque(N.m) |
3N.m |
6N.m |
8N.m |
10N.m |
13N.m |
|
|
28r/min |
28r/min |
28r/min |
17r/min |
12r/min |
|
工作制 - Work System |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
|
绝缘等级 - Insulation Level |
F |
F |
F |
F |
F |
|
产品认证 - PRODUCT CODE |
|
|
|
|
|
