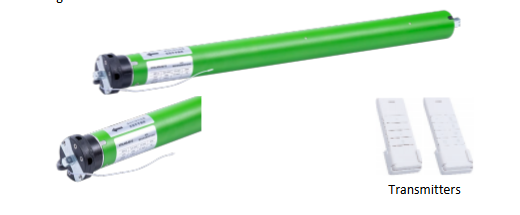

Product Name: HTDL45R (built-in) series motor
Product Introduction:
Built-in receiver with a frequency of 433.92MHz
HTDL45R The maximum number of motor strokes can reach 40 turns;
mechanical limit;
The stroke head has a small diameter and low operating noise, and is suitable for indoor sunshade products such as electric roller blinds, electric wooden venetian blinds, electric Roman blinds, and electric folding blinds.
Suitable for the following series of accessories:
|
管子尺寸 /TUBE SIZE |
传动管 /TUBE TYPE |
尾插 /TAIL PLUG |
CROWN |
RUNNER /RUNNER |
||||||
|
F50 |
HTDL-CD50 |
|
HTDL-WC47 |
|
HTDL-HG45 |
|
HTDL-ZL45 |
|
||
|
F55 |
HTDL-CD55 |
HTDL-WC55 HTDL-WC55-70 |
|
|
HTDL-HG55 |
|
HTDL-ZL55 |
|
||
|
|
HTDL-CD60 |
|
HTDL-WC57-01 HTDL-WC60L |
|
HTDL-HG57 |
|
HTDL-ZL57A HTDL-ZL57 |
|
||
|
○ 63 |
HTDL-CD63 |
|
HTDL-WC60-01 HTDL-WC63L |
|
HTDL-HG60 |
|
HTDL-ZL60A HTDL-ZL60 |
|
||
|
|
HTDL-CD70 |
|
HTDL-WC67-01 HTDL-WC70L |
|
HTDL-HG67 |
|
HTDL-ZL67A HTDL-ZL67 |
|
||
Use:
|
shutters |
Roller shutters |
Film and television screens |
Drying racks |
Technical Parameters:
|
型号 - PRODUCT CODE |
HTDT45R- 10/15 |
HTDT45R- 20/15 |
HTDT45R- 30/12 |
HTDT45R- 40/15 |
HTDT45R- 50/12 |
HTDT45R- 60/9 |
HTDT45R- 70/8 |
|
|
额定电压 - Rated Voltage(V) |
220V |
220V |
220V |
220V |
220V |
220V |
220V |
|
|
额定频率 - Rated Frequency(Hz) |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
|
|
额定输入功率 - RATED INPUT POWER(W) |
120W |
150W |
200W |
230W |
250W |
258W |
263W |
|
|
额定输出转矩 - Rated output torque(N.m) |
10N.m |
20N.m |
30N.m |
40N.m |
50N.m |
60N.m |
70N.m |
|
|
Rated speed or number of poles - |
Rated speed or number of poles( r/min) |
15r/min |
15r/min |
15r/min |
15r/min |
12r/min |
9r/min |
8r/min |
|
工作制 - Work System |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
|
|
绝缘等级 - Insulation Level |
F |
F |
F |
F |
F |
F |
F |
|
|
产品认证 - PRODUCT CODE |
|
|
|
|
|
|
|
|
