HTDL45S (Standard) Series Motor

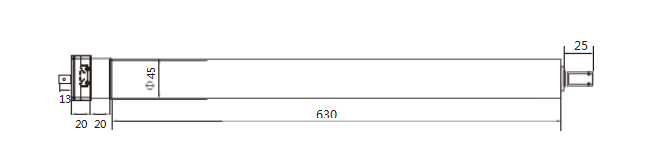

Dimensional drawing:

Wiring diagram:

Blue = Centerline (Zero Line) Black = upper or lower phase Brown = upper or lower phase Yellow / Green = Ground wire 230V/50HZ

Product Name: HTDL45S (Standard) Series Motor

Product Introduction:

External receiver, frequency 433.92MHz

HTDL45S The maximum number of strokes of the motor can reach 40 turns, and the mechanical limit can be reached;

mechanical limit;

The stroke head has a small diameter and low operating noise, and is suitable for indoor sunshade products such as electric roller blinds, electric wooden venetian blinds, electric Roman blinds, and electric folding blinds.
