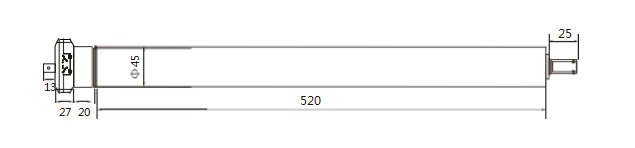

401Dimensional drawing:
Dimensional drawing:
Wiring diagram:
 |
Blue = Centerline (Zero Line) Black = upper or lower phase Brown = upper or lower phase Yellow / Green = Ground wire 230V/50HZ |
Product Name: HTDL45M (Rolling Door Hand Crank) Series Motor
Product Introduction:
External receiver, frequency 433.92MHz
A variety of stroke heads are available
HTDL45M The maximum number of turns of the motor is up to 22 turns
mechanical limit; The operating noise is small, and it is suitable for electric roller shutter doors, electric awnings and other sunshade products.
Suitable for the following series of accessories:
|
管子尺寸 /TUBE SIZE |
传动管 /TUBE TYPE |
尾插 /TAIL PLUG |
CROWN |
RUNNER /RUNNER |
||||||
|
F50 |
HTDL-CD50 |
HTDL-WC47 |
|
HTDL-HG45 |
|
HTDL-ZL45 |
|
|||
|
F55 |
HTDL-CD55 |
HTDL-WC55 HTDL-WC55-70 |
|
|
HTDL-HG55 |
|
HTDL-ZL55 |
|
||
|
|
HTDL-CD60 |
|
HTDL-WC57-01 HTDL-WC60L |
|
HTDL-HG57 |
|
HTDL-ZL57A HTDL-ZL57 |
|
||
|
○ 63 |
HTDL-CD63 |
|
HTDL-WC60-01 HTDL-WC63L |
|
HTDL-HG60 |
|
HTDL-ZL60A HTDL-ZL60 |
|
||
|
|
HTDL-CD70 |
|
HTDL-WC67-01 HTDL-WC70L |
|
HTDL-HG67 |
|
HTDL-ZL67A HTDL-ZL67 |
|
||
Use:
|
Electric roller shutter doors |
Roller shutters |
Awnings |
Technical Parameters:
|
型号 - PRODUCT CODE |
HTDT45M- 10/15 |
HTDT45M- 20/15 |
HTDT45M- 30/15 |
HTDT45M- 40/15 |
HTDT45M- 50/12 |
HTDT45M- 60/9 |
HTDT45M- 70/8 |
|
|
额定电压 - Rated Voltage(V) |
220V |
220V |
220V |
220V |
220V |
220V |
220V |
|
|
额定频率 - Rated Frequency(Hz) |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
|
|
额定输入功率 - RATED INPUT POWER(W) |
125W |
150W |
200W |
230W |
250W |
258W |
263W |
|
|
额定输出转矩 - Rated output torque(N.m) |
10N.m |
20N.m |
30N.m |
40N.m |
50N.m |
60N.m |
70N.m |
|
|
Rated speed or number of poles - |
Rated speed or number of poles( r/min) |
15r/min |
15r/min |
15r/min |
15r/min |
12r/min |
9r/min |
8r/min |
|
工作制 - Work System |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
|
|
绝缘等级 - Insulation Level |
F |
F |
F |
F |
F |
F |
F |
|
