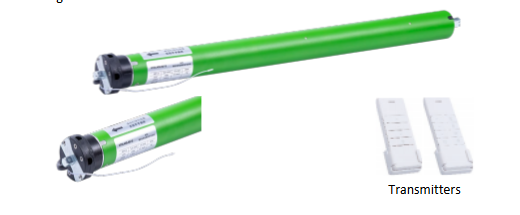

Product Name: HTDL45RM (special for sunshade) series motor
Product Introduction:
Built-in receiver with a frequency of 433.92MHz
HTDL45RM The maximum number of turns of the motor is up to 22 turns
mechanical limit; The operation noise is low, and it is suitable for outdoor shading products.
Suitable for the following series of accessories:
|
管子尺寸 /TUBE SIZE |
传动管 /TUBE TYPE |
尾插 /TAIL PLUG |
CROWN |
RUNNER /RUNNER |
||||||
|
F50 |
HTDL-CD50 |
|
HTDL-WC47 |
|
HTDL-HG45 |
|
HTDL-ZL45 |
|
||
|
F55 |
HTDL-CD55 |
HTDL-WC55 HTDL-WC55-70 |
|
|
HTDL-HG55 |
|
HTDL-ZL55 |
|
||
|
|
HTDL-CD60 |
|
HTDL-WC57-01 HTDL-WC60L |
|
HTDL-HG57 |
|
HTDL-ZL57A HTDL-ZL57 |
|
||
|
|
HTDL-CD63 |
|
HTDL-WC60-01 HTDL-WC63L |
|
HTDL-HG60 |
|
HTDL-ZL60A HTDL-ZL60 |
|
||
|
|
HTDL-CD70 |
|
HTDL-WC67-01 HTDL-WC70L |
|
HTDL-HG67 |
|
HTDL-ZL67A HTDL-ZL67 |
|
||
Use:
Awnings
Technical Parameters:
|
型号 - PRODUCT CODE |
HTDT45WM- 10/15 |
HTDT45WM- 20/15 |
HTDT45WM- 30/15 |
HTDT45WM- 40/15 |
HTDT45WM- 50/12 |
HTDT45WM- 60/9 |
HTDT45WM- 70/8 |
|
|
额定电压 - Rated Voltage(V) |
220V |
220V |
220V |
220V |
220V |
220V |
220V |
|
|
额定频率 - Rated Frequency(Hz) |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
50Hz |
|
|
额定输入功率 - RATED INPUT POWER(W) |
120W |
150W |
200W |
230W |
250W |
258W |
263W |
|
|
额定输出转矩 - Rated output torque(N.m) |
10N.m |
20N.m |
30N.m |
40N.m |
50N.m |
60N.m |
70N.m |
|
|
Rated speed or number of poles - |
Rated speed or number of poles( r/min) |
15r/min |
15r/min |
15r/min |
15r/min |
12r/min |
9r/min |
8r/min |
|
工作制 - Work System |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
S2 4min |
|
|
绝缘等级 - Insulation Level |
F |
F |
F |
F |
F |
F |
F |
|
|
产品认证 - PRODUCT CODE |
|
|
|
|
|
|
|
|
